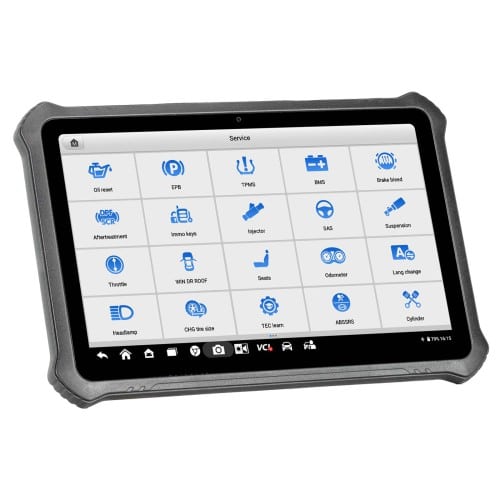

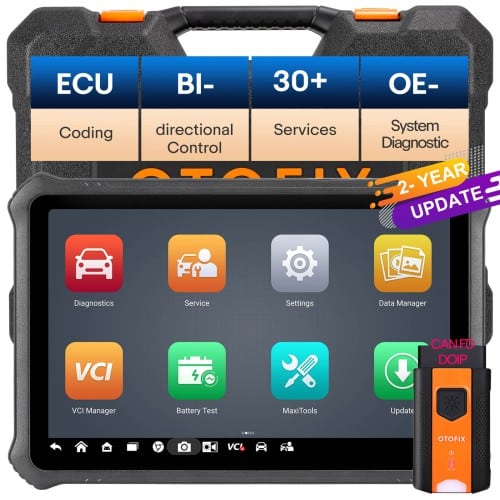

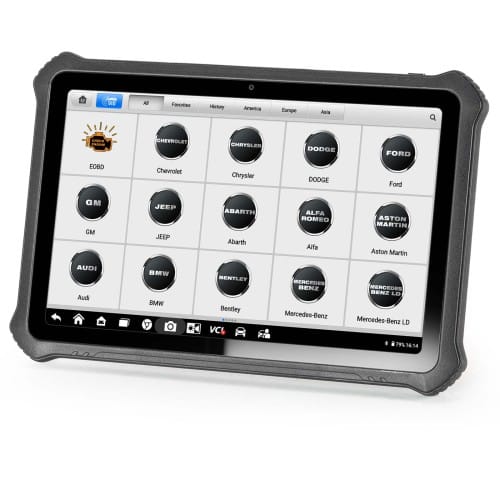

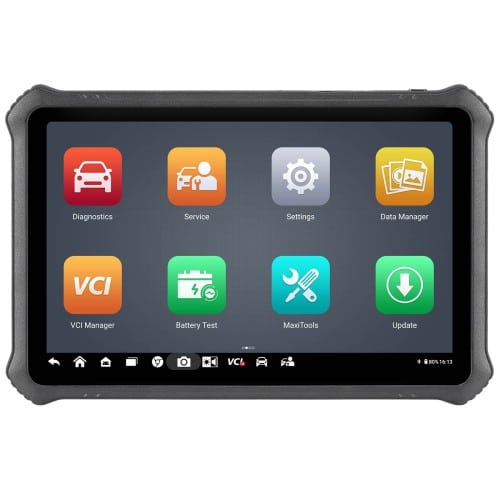

OTOFIX D1 ProS Bi-Directional Diagnostic Tool Supports ECU Coding, 40+ Service, FCA AutoAuth, 2-Year Update


OTOFIX D1 ProS Bi-Directional Diagnostic Tool Supports ECU Coding, 40+ Service, FCA AutoAuth, 2-Year Update
Description
Introduction:
The OTOFIX D1 ProS is built to take your diagnostics experience to a whole new level, supporting smart diagnosis for all available vehicle systems and featuring multiple service functions. As an advanced intelligent automotive diagnostics analyzer, the D1 ProS offers exceptional OE-level diagnostics and DTC analysis. Combined with the OTOFIX cloud service, it provides one-stop solutions from diagnosis to repair.
- 2025 Newly Added Functions: Upgrade your Scanner system to the latest version to get the latest cool features: 1. VIN/Od-ometer Check; 2. Read mileage and VIN values stored in various ECUs; 3. Live Data Fusion; 4. Enable the integration of live data from different systems onto a single interface, facilitating dynamic display.
- Advanced ECU Coding: Help to match the car with component control modules after replacing new ECUs. Online Coding for VW/Skoda/Peugeot/Citroen + Personalization for VW/Au-di/Skoda + Offline Coding for 25 models.
- 40+ Services: Serve for component reset/match/calibration and 99% of vehicle repair. With Oil Reset, EPB Reset, TPMS Reset, BMS Reset, Brake Bleeding, In~jector Coding, SAS Reset, Sunroof, Throttle Matching, WIN DR ROOF, Seat Reset, Aftertreatment, Lang Change, etc.
- Personalization: Customize vehicle settings and activate high-end functions to improve vehicle safety or driving experience. Such as deactivating the auto start-stop, activating auto door lo~cking/unlo~cking, disabling vehicle chimes, etc.
- VAG Guided Functions: Provide onscreen operation instruction for complex ECU coding, component matching and calibration.
- All System Diagnostics: Do full vehicle system check, read fault codes, clean DTCs, view live data, read ECU information, freeze frame, and turn off the annoying “check engine” light, etc.
- Bi-directional Control: For quick problems location, you can widely apply OTOFIX scanner para autos to vehicle doors, windows, sunroof, wipers, headlights, radiator fans, etc.
- Programmable Module Installation: Relearn data to a new module and introduce it to the car system. Compatible with Ford, Mazda, etc.
- FCA SGW Access: OTOFIX D1 PROS bluetooth scanner provides AutoAuth access to safely visit/diagnose FCA SGW vehicles and skip Renault gateway, smoothing the whole diagnostic procedure and efficiency.
- New CANFD/DoIP Protocol: V1 VCI is compliant with CANFD (for GM models) and DoIP (for BMW/Land Rover/Benz/Volvo/GM/VW/Au-di) that automatically identifies vehicle information and accelerate data transmission. OTOFIX D1 PROS gives you a wider range of model support.
- 5X-Speed Auto Scan 2.0: Automatically identify the vehicle and scan all systems to get accurate diagnostics in seconds once connecting VCI with the vehicle , without manually inputting the VIN, improving 5x faster efficiency. Compatible with VW, Au-di, Skoda, Seat, Mercedes-Benz, GM, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Ni-ssan, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, BMW, Mini, etc
- Cloud Report Management: All the diagnostic reports can be well-managed via a cloud server and don’t take up extra memory space. It can be shared by mail, message, and QR code to customers.
- 150 Makes & 10000 Models + 2-Year Free Update
- Multi-language. English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russian etc. Provide S/N to activate language.
- Supports Pre & Post scan
-
Outstanding Hardware Configuration Serves Faster Maintenance Speed
Personalized Appearance Design: Light weight & portable size is molded to fit comfortably flexible movement in/out of the car.
Core Processor & Android 11 OS: Process multi-tasks quickly and smoothly.
HD 10.4-Inch Screen: Large touchscreen with 2000*1200 resolution offers a clearer view and smooth operation experience.
7250mAh Battery: One full charge works comfortably for a long-lasting use period of over 15 hours.
Bigger 4GB+128GB Memory: Extended memory capacity (from 64GB to 128GB) allows you to save all diagnostic reports and resources without caring for narrow storage.
BT & WiFi Connection: Establish more stable communication with the vehicles to perform diagnostics.
V1 VCI: Featuring new Auto Scan 2.0 that runs automatic vehicle identification and 3x faster system diagnostics. Plug to communicate with vehicles, no more need for extra adapters. Compatible with BMW, Mercedes-Benz, VW, GM, Ford, Chrysler, Ni-ssan, Hyundai, KIA, Renault, PSA, etc.
CANFD & DOIP: Compatible with DoIP & CAN FD protocols, OTOFIX
D1 PRO diagnostic scan tool can run faster speed data transfer and diagnostics, which can serve more models like BMW, Land Rover, Mercedes-Benz, Volvo, VW, etc. -
OTOFIX D1 Pros Functions:OE-level Diagnostics:Powerful and fast diagnosis for all vehicle systems, covering 10,000+ car modelsBi-directional control for available components including actuators, valves, and pumpsSupports ECU information, read/erase codes and live dataGuide function following with DTC tips(Supports Volkswagen/Audi)Supports advanced features of Volkswagen and Audi including online IMMO, guide function and hidden function renewal
- Bi-directional Active Tests
OTOFIX D1 PRO is a bi-directional scan tool. It will be one of the most useful accessories you can have when diagnosing car problems. Capable of sending & receiving information to and from your car’s onboard computer, it can pull the data needed to see what’s wrong and command it to perform particular tests.
Examples: Turn on/off the radiator fan, lights, sound horn, fuel pump, etc. • Modulate the throttle • Open/close windows • Operate mirrors • Test the device acceleration, oil pressure control, vehicle level position, inlet & outlet valve, open brakes, wheel speed sensor supply, parking brake, among many others.
- ECU Coding Online + Offline, PMI & Customization
- Online Coding: quick and precise. Online servers send coding values; can be used by any technician or shop, regardless of experience.
Compatible Brands: Volkswagen, Audi, Skoda, Peugeot, Citroen, DS, Porsche, BMW, Mini , Nissan, Infiniti, NissanGT-R, GT-R, Renault, etc.
- Offline Coding: for more customized builds. Manually input coding values for more customized car builds.
Compatible Brands: Ford, Ford AU, FordEU, Subaru, Land Rover, Jagaur, Peugeot, Citroen, DS, Volkswagen, Volkswagen Brazil, Audi, Skoda, Volkswagen CV, Bently, Bugatti, Lamborghini, Man LD, Seat, LT3, Opel, Vauxhall, Mitsubishi, Porsche, etc.
- PMI (Programmable Module Installation): after the ECU module has been replaced, you can use this bidirectional scan tool to perform PMI, to make the newly-installed ECU work properly.
Compatible Brands: Ford, Lincoln, Mazda, etc.
- Customization (Personalization): to get specific needs or preferences, this scanner for car can make personalized adjustment to better suit to your driving experience.
Compatible Brands: LandRover, Jaguar, etc.
- 40+ Service FunctionsOTOFIX D1 PROS is a professional diagnostic tool for almost 99% of vehicle models, including passenger cars, SUVs, Sedans, and Pickups, which supports 40+ maintenance functions for all common repair needs. The vehicle model coverage (from 1996-2025) and diagnostic accuracy have gone far beyond other brand auto scanners. The high-frequency updating also leads you to act high-speed diagnostic way and get the new software data.
- Oil Reset: the scanner for car will help read and reset the oil light.
- SAS: reset the steering angle to zero to keep the car running straight.
- Injector Coding: write the adaptive injector code into car system to achieve the optimum in lowering emissions and provide smooth running.
- EPB: help replace and reset the brake pad.
- BMS Reset: register the battery after replacement.
- DPF: help remove the particulate matter to keep the trap stable.
- ABS Bleeding: help exhaust the air in ABS in an easy way.
- Throttle Adaptation: initialize the throttle actuators to the default state.
- TPMS Reset: reset the tire pressure.
- Immobilizer: no longer to worry about the high costs of lost keys. With this IMMO-served scan tool, you can add new keys with ease on cars equipped with early antitheft systems.
- Gear Learning: help complete the gearbox self-learning to improve gear shifting quality.
- Sunroof Reset: initialize the sunroof when to be locked off, or closed.
- Suspension Reset: adjust the vehicle body height sensor for level calibration.
- AFS Headlamp Reset: initialize the adaptive headlamp system.
- Gearbox Reset: help complete the gearbox self-learning to improve gear shifting quality.And A/F Reset, ADBLUE, Coolant Bleed, EGR Reset, Language Set, NOX Reset, Seat Calibration, Transport Mode, Tire Setting, Stop/Start, Power Balance, AC System Relearn/Initialization, Windows Calibration, etc.
The OTOFIX regular upgrades ensure above 40+ services will be compatible with more newly-launched vehicles to help you double the business.
>> WARM TIPS: IMMO service is available for most Asian models, and some American/European cars. Please ask for the PIN code from car manufacturers, or reach out to us to check car compatibility
- [ 5X Faster AutoScan 2.0 ] Scan In Seconds
Compared to most of normal scan tools on market, D1 PRO has the cutting-edge AutoScan 2.0, allowing you to enjoy 5X faster speed to pull detailed VIN, and scan all diagnosable ECUs in seconds! This is a huge leap forward in automotive diagnostic technology.
Compatible Brands: VW, Aud.i, Skoda, Seat, Mercedes-Benz, G.M, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Nissan, Infiniti, Toyota, Lexus, Scion, For.d, Renault, Dacia, Samsung, Peugeot, Citroen, DS, BMW, Mini, etc. and all CAN-compatible models (regardless of the made year).
>> WARM TIPS
- Make sure the car is made after the year 2006.
- Make sure the network connection is solid.
- AutoScan 2.0 doesn’t work on all cars.
- [ FCA & Renault SGW Access ] More Money to Make
- AutoAuth Service: For 2018+ FCA SGW
- Register AutoAuth Account
- Pay Annual Fee Required
- Register Your Shop, Techs & OTOFIX D1 PRO
- Get Full Diagnostics of FCA SGW Vehicles
Compatible Models: 2018-2024 Fiat, Chrysler, Alfa Romeo, Dodge, Jeep, etc.
>> WARM TIPS: OTOFIX scan tools are available to be registered with AutoAuth service. Click “Add Tool” in your AutoAuth account, and select the “Autel” option when you pick the type of tool.
- Renault SGW Access: For 2015+ Renault SGW
- Upgrade Renault Diagnostic Software to V4.50+
- Download & Install Renault SGW Unl0cking Software. Site: asos,Renault,com /#/ presentation
- Purchase Renault Physical Token
- Open Renault Software and Unl0c.king
- Get Full Diagnostics of Renault SGW Vehicles
- Compatible Models: 2015-2024 Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, Captur II, etc.
-
VAG Guided Functions
Struggling to find the correct Security Access Code and Channel Number for VAG vehicles? Look no further than this scan tool’s Guided Function, which streamlines the process. With it, even beginners can easily navigate the steps required for matching, calibration, and basic settings on VAG vehicles by simply following the provided guidance.
Cloud ReportMaxiFix Cloud Solution, Report Management -
Specifications:
Processor Qcom SM6225 octa-core Memory 4 GB RAM & 128 GB Display 10.4-inch TFT-LED capacitive touch screen with 2000 x1200p resolution Connectivity Wi-Fi (802.11 a/b/g/n/ac)
USB 2.0
Bluetooth V2.1 + EDR
HDMIPower and Battery 7250 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supplyInput Voltage 12 V Power Consumption 6.5 W Operating Temperature 0 to 50°C (32 to 122°F) Storage Temperature -10 to 60°C (14 to 140°F) Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CANOTOFIX D1 Pro vs D1 ProS
Model D1 PRO (660) D1 ProS Hardware CPU Qualcomm 660 Qcom SM6225 octa-core RAM 4GB 4GB ROM 128GB 128GB Battery capacity 15,000mAh 7,250mAh Operating system Android 10.0 Android 11.0 Screen size 10.1 inch 10.4 inch Screen resolution 1920*1200 2000*1200 Connection WiFi (802.11 a/b/g/n/ac)
BT V2.1 + EDR
USB 2.0 (two USB-A host ports, one USB mini device port)
HDMI2.0
GPSWiFi (802.11 a/b/g/n/ac)
BT V2.1 + EDR
USB 2.0 (two USB-A host ports, one USB mini device port)
HDMI2.0Camera Front: No
Rear: 16MPFront: 5MP
Rear: 8MPWeight 1200g 775g VCI V1 V1 Software Read / Clear Trouble Code ✔ ✔ Read Data Stream ✔ ✔ Read Freeze Frame ✔ ✔ Read ECU information ✔ ✔ 36 service functions ✔(40) ✔(40) Special functions ✔ ✔ Active test ✔ ✔ Online programming Benz online programming X X Mybach online programming X X MiNi online programming X X BMW online programming X X Online coding Benz SCN online coding X X BMW online coding X X MiNi online coding X X Audi online coding ✔ ✔ Porsche online coding X X VW online coding ✔ ✔ VW_Brazil online coding ✔ ✔ SKoda online coding ✔ ✔ Peugeot online coding ✔ ✔ Citroen online coding ✔ ✔ DS online coding ✔ ✔ Nissan online coding X X Nissan-GTR online coding X X Infiniti online coding X X Renault online coding X X Hidden features BMW hidden features X X Mini hidden features X X Hidden features on VW, Audi and Skoda ✔ ✔ Guided functions Guided functions on VW, Audi, Skoda, and Seat ✔ ✔ TPMS functions TPMS(Sensor programming, sensor activation, etc.) X X Extension functions Oscilloscope (compatible with MP408) ✔ X Endoscope (compatible with MV105 / MV108) ✔ ✔ ADAS extension X X Battery testing ✔ ✔ Cloud service Remote support X X Report management (reports to cloud) ✔ ✔ Accufix X X Repair Data X X Smart diagnostics Smart diagnostics (TSB, DTC guidance, DTC sequencing, repair videos, etc.) X X Diagnostics system topology X X Languages Language support Multi-language Multi-language Other functions Diagnostics functions for McLaren and Tesla X X Auto VIN ✔ ✔ SCAN VIN/License ✔ ✔ Remote Desk ✔ ✔ D-PDU /
RP1210X X DoIP/CAN FD ✔ ✔ Pre & Post Scan ✔ ✔ WiFi printing ✔ ✔ Security gateway Renault security gateway ✔ ✔ Package Includes:
1pc x Main Unit1pc x OTOFIX V11pc x Type-C USB Cable1pc x AC/DC External Power Adapter1pc x USB to Ethernet Adapter1pc x Auxiliary Power Outlet Adapter2pcs x Spare Fuses(6 x 30 mm)1pc x Packing list1pc x Quick reference guide1pc x Soft Cloth1pc x Carrying Case(480 x 362 x 142 mm)
