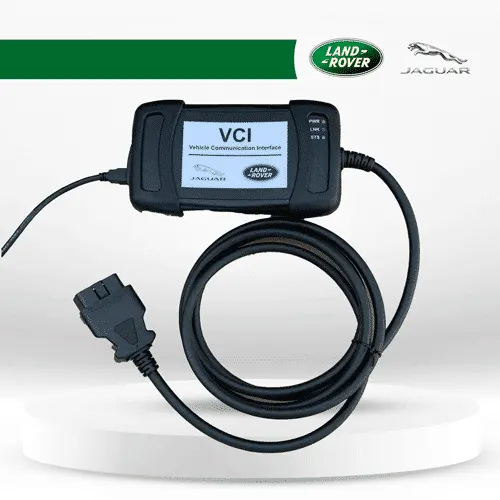

Jaguar Landrover OEM VCI interface for SDD

Description

Jaguar Landrover Approved device for SDD

• Replacement for JLR SDD VCI’s
• Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks (Not DOIP)
• 2m USB Cable as standard included
• Easy to update for J2534 new functionality updates

What does the Jaguar Landrover VCI do?

The Jaguar Landrover VCI connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD.  Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool.  All communication is possible with this device.

How does the JLR VCI operate in J2534 Mode?

The JLR VCI is simple and easy to use. Drivers are available to install with JLR SDD DVD 142.  Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle). Connect the 2m USB cable to the JLR VCI and the other end to the SDD Laptop. The JLR VCI powers up when the (PWR) LED turns solid red. During communication with the vehicle the Status (STS) LED will flash green.

How does the JLR VCI get updated for future Software Updates?

• Periodically JLR will release updates to its products’ drivers and software. These updates are necessary to either release further device functionality or to resolve field issues.
• The diagnostic test application handles driver and software updates, installing them upon request.
• If you encounter issues while using the device, ensure that you have installed the latest device software and drivers.

Vehicle Coverage:

• The JLR VCI is suitable for use with all JLR vehicle models with the following exceptions:
  • Flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models (AJ16, AJ26, AJ27 engines).
  • Simultaneous logging of ECM and TCM data logger signals on 2006my Range Rover
