How to Program GM Steering Assist Torque Maps with Techline

Introduction

TL;DR: Follow our step-by-step guide to program steering assist torque maps via GM Techline for improved vehicle handling.

The art of tuning steering assist torque maps is vital for ensuring precise handling and safety in GM vehicles. In this guide, we explain how to program steering assist torque maps via GM Techline, detailing every step from initial connection to final system verification. Our objective is to help you achieve optimal steering performance with reliability and ease.

Requirements and Tools

Before you begin, ensure you have all the necessary tools and a proper workspace. Here’s what you need:

• GM Techline service tool access
• A compatible GM vehicle
• Diagnostic cable and a computer
• Updated GM Techline Connect software
• Safety equipment and a dedicated workspace
• Additional insights from our internal resource: TechRoute66 Home

Enhance your setup with professional-grade tools such as Tech2win and TIS Manuals, GM Techline SPS2 – Full Dealer Online Programming Access, and Tech2Win and GDS2: The Ultimate GM Diagnostic Software to ensure a seamless programming experience.

Step-by-Step Programming Process

Follow these detailed steps to program the steering assist torque maps via GM Techline:

1. Connect to the Vehicle: Plug the GM Techline tool into the vehicle’s OBD-II port.

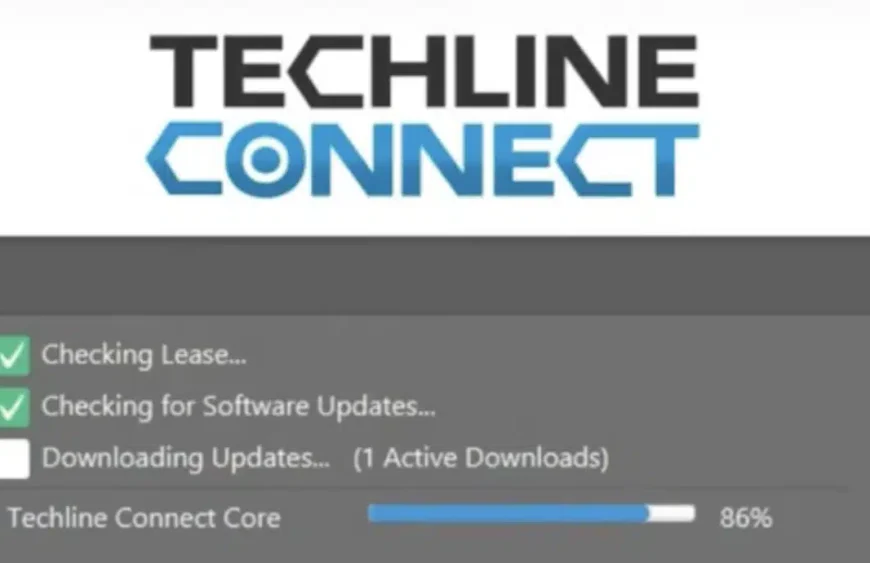

2. Launch the Software: Start GM Techline Connect software and log in with your credentials.
3. Select the Vehicle: Choose the appropriate model and year from the vehicle list.
4. Access the Torque Map Module: Navigate to the steering assist torque map section within the software interface.
5. Backup Current Settings: Save the existing torque map configuration as a precaution.
6. Adjust Parameters: Modify the torque map settings based on the vehicle’s requirements or performance goals.
7. Save and Apply: Upload the new settings to the vehicle’s system.
8. Verify the Process: Conduct a system test to confirm that the new configuration is active and functioning correctly.

Troubleshooting Common Issues

During the programming process, you might encounter some challenges. Here are common issues and their fixes:

• Connection Failures: Check the diagnostic cable and ensure the OBD-II port is clean and free of damage.
• Software Errors: If the GM Techline Connect software crashes or throws error messages, verify that you have the latest update installed.
• Inaccurate Parameter Adjustments: Revisit the torque map settings to ensure that the changes align with manufacturer recommendations.
• Calibration Flaws: Post-programming, perform a calibration routine to confirm that sensors and actuators are working as expected.

Frequently Asked Questions (FAQs)

Best Practices and Tips

Enhance your programming experience with these tips:

• Double-check that your vehicle is compatible with the GM Techline system.
• Make sure your software is up-to-date before initiating any programming sessions.
• Maintain a stable power supply and use a reliable diagnostic cable to avoid interruptions.
• Keep detailed records of any changes made to the torque maps for future reference.

Conclusion and Call to Action

Properly programming your steering assist torque maps via GM Techline is crucial for maintaining optimal vehicle performance and safety. By following this comprehensive guide, you can ensure that your adjustments are both effective and reliable. For further insights and additional support, explore our detailed resources on GM Techline programming.

Ready to enhance your vehicle diagnostics? Check out our comprehensive guide at GM TechLine Connect: A Comprehensive Guide and take your skills to the next level.

Written by Alex B., ASE Master Tech
