Original Xhorse VVDI Prog Programmer with Bosch ECU Adapter Read BMW ISN from ECU DME N20 N55 B38
Original Xhorse VVDI Prog Programmer with Bosch ECU Adapter Read BMW ISN from ECU DME N20 N55 B38
Descrição

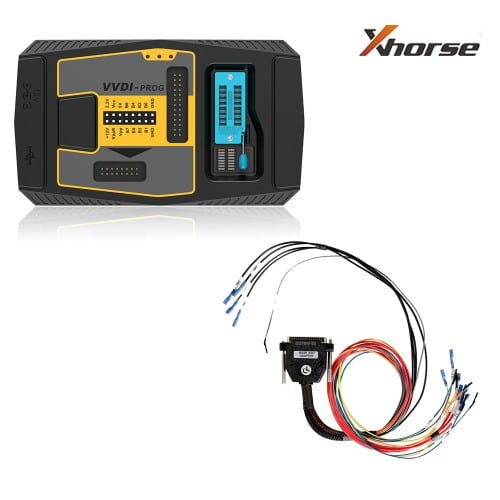

Xhorse VVDI Prog Programmer with Bosch ECU Adapter
TOP 7 Reasons to Get VVDI PROG Programmer
- Built-in update software: Make VVDIProg firmware update timely.
- High-speed USB communication interface: Make software automatically connect.
- Smart operation mode: possible causes of error will be listed
- Reserve ports: For future update.
- Self-test function: Check if the machine works well or not.
- Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
- Language: English,Arabic,Cezch,French,Italian,Polish,Portuguese,Russian,Spanish,Turkish,Chinese
Supports BMW N20/N55/B38 ISN reading without Opening
+ Add ME17.5.22(TC1724)(ADAPTER),
MEVD17.2.4_Exx(N20)(ADAPTER),
MEVD17.2.4_Exx(N20)(ADAPTER),
MEVD17.2.4_Fxx(N20)(ADAPTER),
MEVD17.2.9_Fxx(N20)(ADAPTER),
MEVD17.2.9_Exx(N20)(ADAPTER),
MED17.5.25(TC1782)(ADAPTER),
MED17_5_22(TC1782)(ADAPTER),
MEVD17_2_3(B38)(ADAPTER),
MEVD17_2_K(B38)(ADAPTER),
MEVD17.2.5(ADAPTER),
MEVD17.2.8(ADAPTER),
MEVD17.2.H(ADAPTER),
MEVD17.2.P_Fxx(N20)(ADAPTER),
MEVD17.2_Fxx(N55)(ADAPTER),
MEVD17.2.G(N55)(ADAPTER),
MEVD17.2.6(N55)(ADAPTER)
options in <10-BOSCH-ECU-ADAPTER>->
(Need BOSCH ECU ADAPTER)
+ Add ME17.5.22(ADAPTER),
MED17_5_25(ADAPTER) options in
<10-BOSCH-ECU-ADAPTER>->
Package List:
1pc x VVDI PROG multiplexer
1pc x Square USB cable
1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
1set x BMW ECU N20/N55/B38 Reading ISN Cable
Supported chips list
2.1 EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported in the future
2.2 MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported £ means the type will be supported in the future.
2.3 ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAG MEG17.5-TC1766 | £ | ||
| VAG MED17.5.1-TC1796 | £ | ||
| VAG MED17.5.2-TC1767 | £ | ||
| VAG MED17.5.5-TC1766 | £ | ||
| VAG MED17.5.20-TC1766 | £ | ||
| VAG EDC17 CP14/CP20-TC1796 | £ | ||
| VAG EDC17 CP04-TC1796 | £ | ||
| VAG EDC17 C46-TC1767 | £ | ||
| VAG EDC17 CP24-TC1796 | £ | ||
| VAG EDC17 CP44-TC1797 | £ | ||
| VAG EDC17 U01-TC1766 | £ | ||
| VAG EDC17 U05-TC1796 | £ | ||
| VAG/Porsche Siemens Continental SDI 3- TC1796 |
£ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
Note: R means the type is supported £ means the type will be supported in the future.
