Descripción

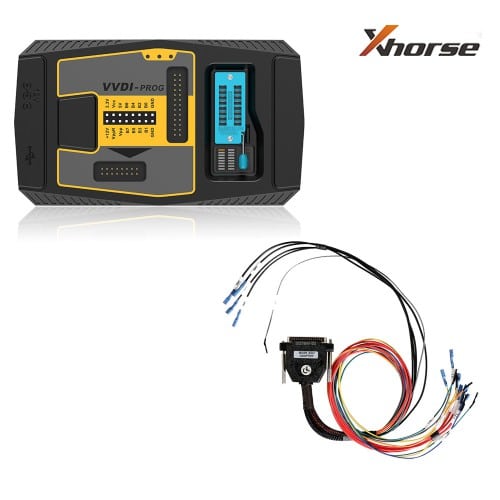

Xhorse VVDI Prog Programmer with Bosch ECU Adapter
TOP 7 Reasons to Get VVDI PROG Programmer
- Built-in update software: Make VVDIProg firmware update timely.
- High-speed USB communication interface: Make software automatically connect.
- Smart operation mode: possible causes of error will be listed
- Reserve ports: For future update.
- Self-test function: Check if the machine works well or not.
- Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
- Language: English,Arabic,Cezch,French,Italian,Polish,Portuguese,Russian,Spanish,Turkish,Chinese
Supports BMW N20/N55/B38 ISN reading without Opening
+ Add ME17.5.22(TC1724)(ADAPTER),
MEVD17.2.4_Exx(N20)(ADAPTER),
MEVD17.2.4_Exx(N20)(ADAPTER),
MEVD17.2.4_Fxx(N20)(ADAPTER),
MEVD17.2.9_Fxx(N20)(ADAPTER),
MEVD17.2.9_Exx(N20)(ADAPTER),
MED17.5.25(TC1782)(ADAPTER),
MED17_5_22(TC1782)(ADAPTER),
MEVD17_2_3(B38)(ADAPTER),
MEVD17_2_K(B38)(ADAPTER),
MEVD17.2.5(ADAPTER),
MEVD17.2.8(ADAPTER),
MEVD17.2.H(ADAPTER),
MEVD17.2.P_Fxx(N20)(ADAPTER),
MEVD17.2_Fxx(N55)(ADAPTER),
MEVD17.2.G(N55)(ADAPTER),
MEVD17.2.6(N55)(ADAPTER)
options in <10-BOSCH-ECU-ADAPTER>->
(Need BOSCH ECU ADAPTER)
+ Add ME17.5.22(ADAPTER),
MED17_5_25(ADAPTER) options in
<10-BOSCH-ECU-ADAPTER>->
Package List:
1pc x VVDI PROG multiplexer
1pc x Square USB cable
1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
1set x BMW ECU N20/N55/B38 Reading ISN Cable
Supported chips list
2.1 EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported in the future
2.2 MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported £ means the type will be supported in the future.
2.3 ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAG MEG17.5-TC1766 | £ | ||
| VAG MED17.5.1-TC1796 | £ | ||
| VAG MED17.5.2-TC1767 | £ | ||
| VAG MED17.5.5-TC1766 | £ | ||
| VAG MED17.5.20-TC1766 | £ | ||
| VAG EDC17 CP14/CP20-TC1796 | £ | ||
| VAG EDC17 CP04-TC1796 | £ | ||
| VAG EDC17 C46-TC1767 | £ | ||
| VAG EDC17 CP24-TC1796 | £ | ||
| VAG EDC17 CP44-TC1797 | £ | ||
| VAG EDC17 U01-TC1766 | £ | ||
| VAG EDC17 U05-TC1796 | £ | ||
| VAG/Porsche Siemens Continental SDI 3- TC1796 |
£ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
Note: R means the type is supported £ means the type will be supported in the future.
